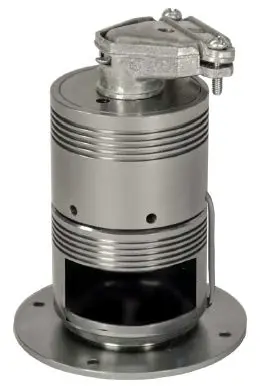

Solid State Transducer – Chicago Rated (with bracket)

Solid State Transducer – Chicago Rated (with bracket)

Model -

SDSPKR3T

Function

The SDSPKR3T Solid State Transducer Speaker enables sound masking, paging and music to be distributed uniformly throughout the space, without the visibility of a standard speaker.

A truly hidden speaker, the SDSPKR3T installs directly behind walls and ceilings. The unit turns an entire structure’s surface into a high-quality sound source while remaining completely hidden from view. In fact, the SDSPKR3T can generate sound by utilizing only 2.5 to 10 watts. This speaker is thermally protected, so it can also be used in high-output applications.

Specifications

Frequency Response Max: 70-15,000 Hz Nominal w/o EQ – depends on substrate
Input: 70V
Power taps: 2.5/5/10 Watts
Diameter – Housing Body: 2.30” / 58 mm
Diameter – Mounting Foot: 3.50” / 89 mm
Height – Housing Body: 4.80” / 122 mm
Weight: 1.5 lb / 0.68 kg per drive

Models

SDSPKRT: includes backet for 16″ studs

Agency Listings

UL 1480: Speakers for fire alarm, emergency, and commercial and professional use.
UL 1480A: Speakers for commercial and professional use.
UL 2043: Approved for use in air handling spaces.
CSA C22.2 No. 205-12 Signal equipment.
